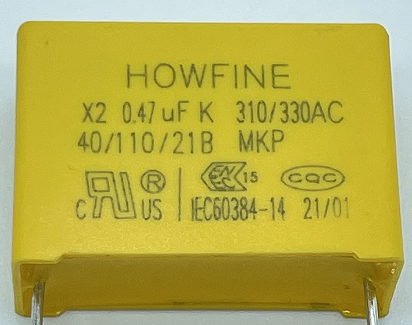

X2 Metallized polypropylene film anti-interference capacitor 474K/310V P22.5 E4

^{PRODUCT INFORMATION}

^{Introduction:}

^{1. Safety Capacitors : High Stability}

^{2. Non-inductive.}

^{3. Self-healing characteristics.}

^{4. Plastic case, epoxy resin filled, box made of solvent resistant material.}

^{5. Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.}

^{6. Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2}

^{7. Safety Approved (UL. ENEC. CQC)}

^{8. The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin}

^{encapsulation in the in the plastic shell, fire-retardant performance reaches UL94V-0 grade.}

^{Specifications}

^{1. Operating temperature: -40°C ~ +110°C}

^{2. Capacitance range: 0.01uF~3.3uF}

^{3. Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )}

^{4. Rated voltage: 310VAC,330VAC}

^{5. Dissipation factor:0.1%MAX AT 1KHz, 25°C}

^{6. Voltage proof: 2100VDC 1Sec (20°C)}

^{7. Insulation resistance:}

^{>30,000MΩ (C≤0.33uF)}

^{>10,000MΩ/ uF (C>0.33uF) AT 25°C}

^{8. Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,}

^{1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,}

^{ΔIR≥50% of the specified value.}

	1	Small size.
	2	Widetemperature,frequency irritating content DF with high stability.
	3	High current withstands extremely highdielectric strength.
	4	Long-term work stability.
	5	Fire rating:UL94V-0.6.
	6	There is self-healing.
	7	Widely used with power supply jumpercircuits, bypass, antenna coupling and other interference sites.
	8	Can withstand the pressure.

^{SIZE SPECIFICATION}

Application

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...
The function of these capacitors is to protect against surges and transients, as well as provide EMI filtering. Safety capacitors are circuit specific and protect circuits and users from high voltage surges by shunting the pulse energy to ground. A common cause of such surges is lightning strikes.

When does capacitor reliability become critical to safety?
The line filter capacitor is divided into X capacitor or Y capacitor. X capacitors are connected between line and neutral to prevent differential mode interference. Their failure will not create the conditions for a dangerous electric shock, although it may pose a fire risk. However, Y capacitors are designed to filter out common mode noise and are connected at
