    CBB22 Red Metallised Polypropylene Capacitors , Anti Interference Capacitor Box Type

    Ask Lasest Price
    Brand Name : HOWFINE
    Model Number : CBB22 185K/250V
    Certification :
    Price : RMB 0.32-0.35/pcs
    Payment Terms : T/T
    Supply Ability : 300K Pieces per Month
    Delivery Time : 7-15work days
    • Product Details
    • Company Profile

    CBB22 Red Metallised Polypropylene Capacitors , Anti Interference Capacitor Box Type

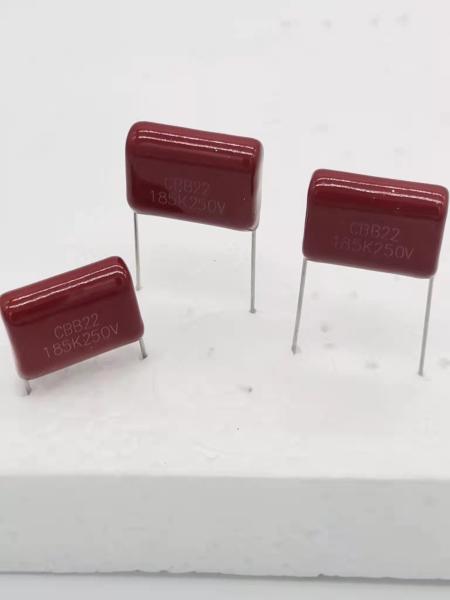

    Metallized polypropylene film capacitor CBB22 185K250V P20mm L4mm


    Features:


    1. Excellent self-healing ability

    2. Excellent temperature characteristic ability

    3. Excellent flame resistance ability

    4. Lower DF value and high insulation resistance
    5. Low loss at high frequency
    6. Small inherent temperature rise
    7. Flame retardant epoxy resin powder coating (UL94/V-0)


    ▇ Specifications

    Climatic Category40/105/21
    Operating Temperation Range

    -40 ℃ ~ 105℃

    ( +85℃ to +105℃; decreasing factor 1.25% per ℃ for vR (dc))

    Ratde VoltageDC 100V ,250V,400V,630V
    Capacitance Range0.01µF~10 µF
    Capacitance Tolerance±5% (J), ±10%(k)
    Voltage Proot1.6UR (5s)
    Dissipation Factor≤10x10-4 (1kHz, 20℃)
    Insulation Resistance

    ≥50000MΩ , CR≤0.33 µF

    ≥15000s, CR>0.33 µF (20℃ 100V 1min)


    W: capacitor body width
    ② H: Capacitance height

    ③ T :Capacitance thickness


    ④ P:he distance between two CP lines


    ⑤ d: Diameter of CP line


    Typical Applications


    ● Widely used in high frequency,DC ,AC and pulse circuits

    ● Providing optimun performance with small size in S-correction circuits for colour TV

    ● Specially designed for S-correction circuits of large screen monitor and colour TV

    ● Suitable for the situation where applies high frequency and high current pulse
