Practical Heatproof Metallized Polyester Film Capacitor Box Type Durable

Ask Lasest Price
Brand Name :	CL23B
Model Number :	CL23B 155J63V P5mm
Certification :
Price :	RMB 0.68-0.75/PCS
Payment Terms :	T/T
Supply Ability :	100K Pieces per Month
Delivery Time :	15-21 work days

Add to Cart

Product Details
Company Profile

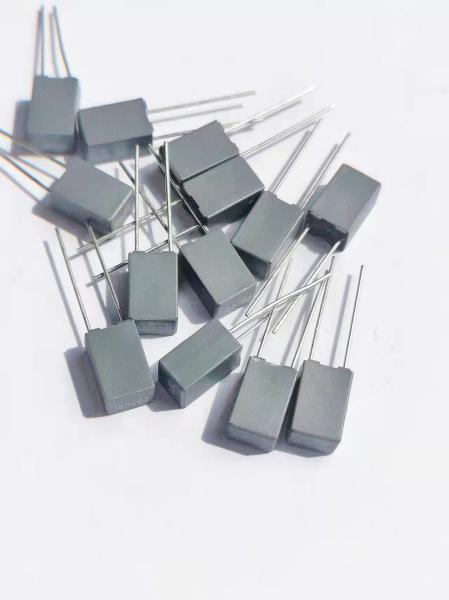

Practical Heatproof Metallized Polyester Film Capacitor Box Type Durable

MINIBOX 1.5uf/63v 155J polydster film Capacitor

Features
1. Metallized polyester film,stacked construction
2. Plastic case(UL94 V-0),epoxy resin sealing
3. High dv/dt ability
Typical Applications:
1. By-passing,blocking,coupling,decoupling
2. Pulse logic,timing,compact fluorescent lamps
3. Inverter for LCD monitors automative DC motor suppression
Specifications
Reterence Standard	GB/T 7332(IEC 60384-2)
Climatic Category	55/125/56
Rated Temperature	85℃
Operating Temperature Range	55℃-125℃(+85 C to +125℃:decreasing factor 1.25% per C for Ur (dc)
Rated Voltage	50/63V.100V.250V,400V.500V.630V.700V
Capacitance Range	0.0010uF-2.2uF
CapacitanceTolerance	+5%(J),±10%(K),±20%(M)
Voltage Proof	1.4Ua(5s)
Dissipation Factor	Frequency	Cn0.1pF	Cn>0.1uF
	1kHz	≤1.0%	≤1.0%
	10kHz	≤1.5%	≤1.5%
	100kHz	≤3.0%
Insulation Resistance	UR>100V	R≥30000MΩ. CN≤0.33uF RCN≥ 10000s, CN>0.33uF	(20℃,100V,1min)
	UR>100V	R≥15000MΩ.CN≤0.33uF RCN≥ 5000s,0.33uF< CN≤1.0uF RCN≥ 1000s, CN>1.0uF	(20℃.10V,1min)

Company Information

Our factory is an expert manufacturer of Film Capacitor which provides DC capacitors and AC capacitors. So far, our products have obtained UL, ENEC, CB, CQC, safety approval and company certification by ISO-9001:2008 quality assured firm.

We use efficient automatic equipment which ensures maximum consistency in your OEM orders to produce each capacitor. With 12 years of industrial experience, Don't hesitate to contact us

If you have any question, we always supply competitive price and good quality products.

FAQ

1. Are you a manufacturer?

A: Yes, we are the manufacturer. We have one factory in DongGuan, Guangdong, China. You are warmly welcome to visit our factory.

2. Can I order if quantity less than MOQ?

Yes and it would be taken as sample order to production. We take more serious on sample order.

3. Can I get Free Samples?

Yes. If samples we have in stock would be provided free for testing. However, the shipping fee should be paid by your side.

4. Can I order with my LOGO printing, size, shape and package?

Yes, we do OEM. We also have professional design team for you if you need.

5. What is your lead-time?

OEM order: 15-20 DAYS. NORMAL order: 2-7 DAYS.

6. What's your guaranty?

Our company has a strict quality check system which ensures that our products achieve consistent quality standards. All quality problem or damage during delivery will be Refundable and Exchangeable.
