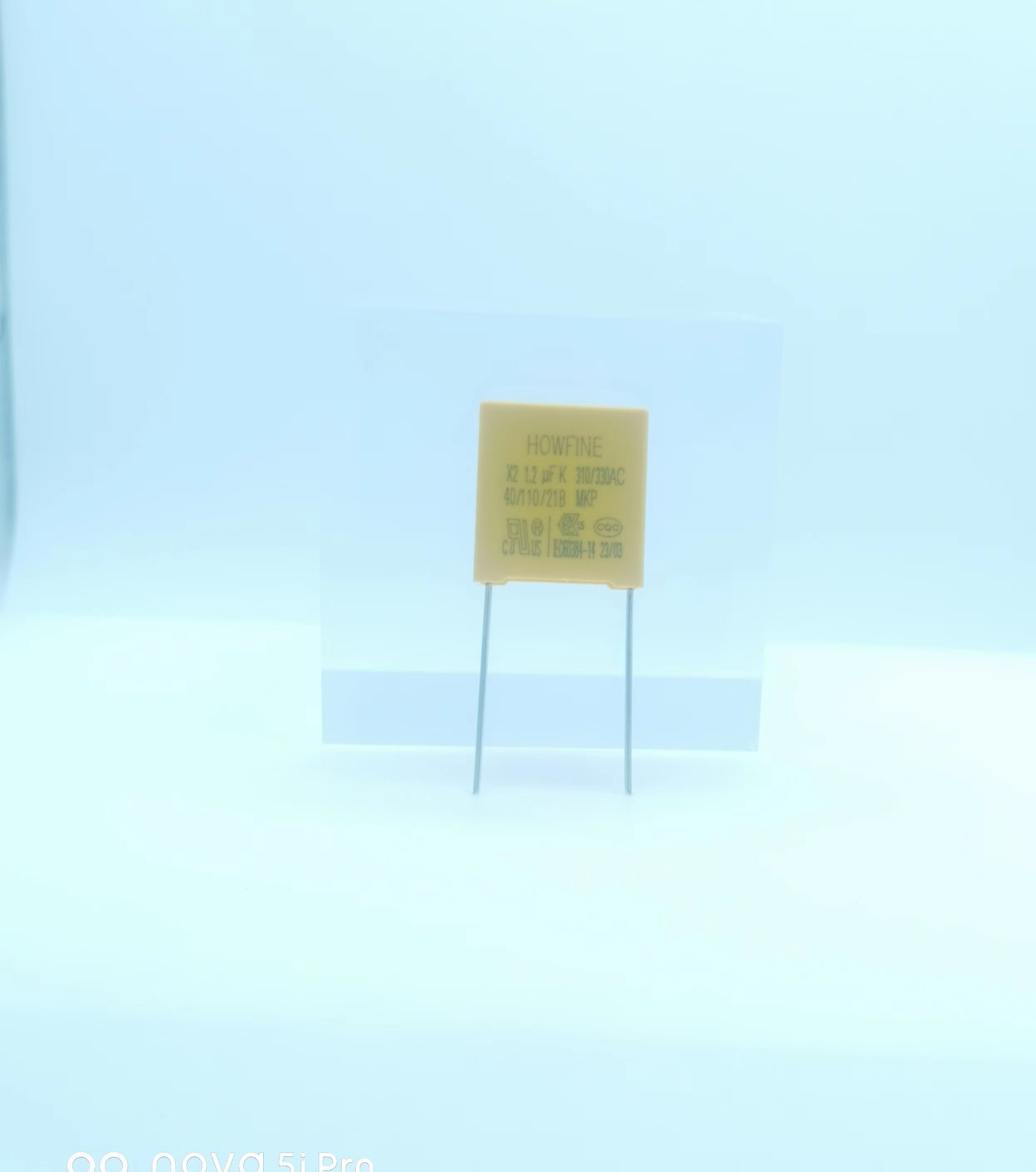

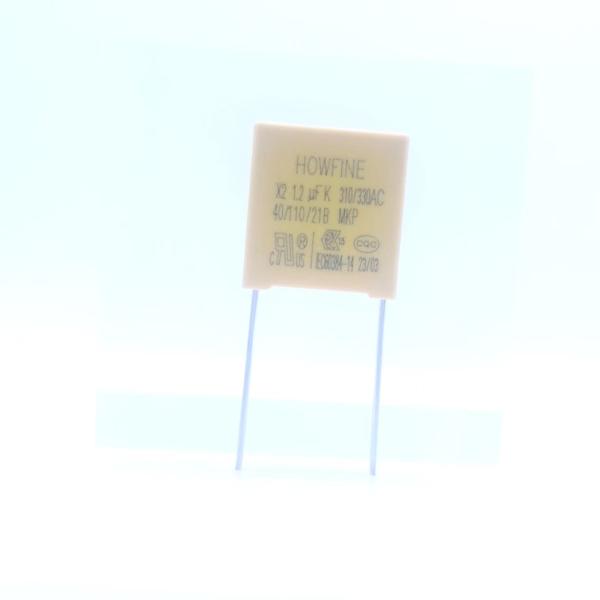

X2 Metallized polypropylene capacitor 125K/310V P15

^{PRODUCT INFORMATION}

^{Introduction:}

^{1. Safety Capacitors : High Stability}

^{2. Non-inductive.}

^{3. Self-healing characteristics.}

^{4. Plastic case, epoxy resin filled, box made of solvent resistant material.}

^{5. Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.}

^{6. Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2}

^{7. Safety Approved (UL. ENEC. CQC)}

^{8. The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin}

^{encapsulation in the in the plastic shell, fire-retardant performance reaches UL94V-0 grade.}

^{Specifications}

^{1. Operating temperature: -40°C ~ +110°C}

^{2. Capacitance range: 0.01uF~3.3uF}

^{3. Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )}

^{4. Rated voltage: 310VAC,330VAC}

^{5. Dissipation factor:0.1%MAX AT 1KHz, 25°C}

^{6. Voltage proof: 2100VDC 1Sec (20°C)}

^{7. Insulation resistance:}

^{>30,000MΩ (C≤0.33uF)}

^{>10,000MΩ/ uF (C>0.33uF) AT 25°C}

^{8. Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,}

^{1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,}

^{ΔIR≥50% of the specified value.}

^{SIZE SPECIFICATION}

Application

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...
