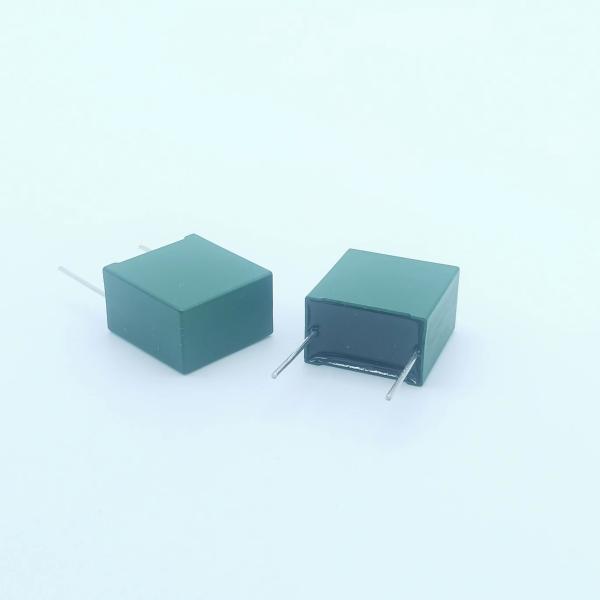

X1 155K/300V Anti Insulation Capacitor

X1 155K/300V Anti Insulation Capacitor


产品名称:X1类300VACProduct name: Class X1 300VAC
产品描述特征:Product description feature
提供干扰抑制,所有安全认证Provides interference suppression, all security certifications
耐受过电压应力Withstand overvoltage stress
自愈特性Self-healing property
主动和被动阻燃剂Active and passive flame retardants
应用 APPLICATIONS
适用于线路旁路,天线耦合,跨线和火花熄灭电路.Suitable for line bypass, antenna coupling, cross-line and spark extinguishing circuits.
适用于EMI滤波器.Suitable for EMI filters.
开关电源应用Switching power supply application
商业机器电器,如:打字机,加法器,电脑显示器和显示器.Commercial machine appliances such as typewriters, adders, computer monitors and monitors.
晶闸管和双向晶闸管电器,例如:调光器.Thyristors and bidirectional thyristor appliances such as dimmers.
技术要求 Specifiations
介质,电介质 Medium, dielectric聚丙烯薄膜 polypropylene film
喷金层 Metal spray特殊焊料 Special Solder
导线 Lead wire鍍錫銅包鋼線 Copper-clad Steel Wire
包封 Envelop阻燃防火塑胶壳并以环氧树脂灌封封装Flame retardant and fireproof plastic shell with epoxy resin encapsulation
涂层 Coating(UL94V-0)塑胶外壳
电容气候类别 Climatic category40/110/21
静电容量与额定电压Electrostatic capacity and rated voltage300/310VAC(50/60Hz) 0.0047uF-10uF
损耗角正切Dissipation Factor≤0.001 (20℃ 1KHz,输出水平1.0V);≤0.003 (20℃ 10KHz,输出水平1.0V)
耐电压Voltage ProofT-T 1333VDC 1min/1700VDC 1s; T-C 2120VAC 50/60Hz 60s
绝缘电阻(20℃ 1min)Insulation ResistanceUr>100V Cr≦0.33 μF IR≥30000 MΩ
Ur>100V Cr≥0.33 μF IR≥5000 MΩ.uF

FAQ:

  • Q: What is the X1Safety Capacitor?
  • A: The X1 Safety Capacitor is a product designed to protect electrical equipment from voltage and current spikes.
  • Q: How does the X1 Safety Capacitor work?
  • A: The X1 Safety Capacitor works by absorbing and dissipating any excessive voltage or current spikes. This helps protect the equipment from damage.
  • Q: What types of electrical equipment can the X1Safety Capacitor be used with?
  • A: The X1 Safety Capacitor can be used with a variety of electrical equipment, including motors, transformers, and other types of electrical appliances.
  • Q: What are the benefits of using the X1 Safety Capacitor?
  • A: The X1 Safety Capacitor offers a number of benefits, including protection from voltage and current spikes, improved efficiency, and longer equipment life.
  • Q: What is the installation process for the X1 Safety Capacitor?
  • A: The X1 Safety Capacitor is easy to install, and detailed instructions are included with the product. It is recommended that a qualified electrician install the device for maximum safety and performance.
